功能概述

hbmem api使用说明，包括com buffer、graphic buffer、graphic buffer group、queue、pool、share pool的创建使用，多进程共享等。

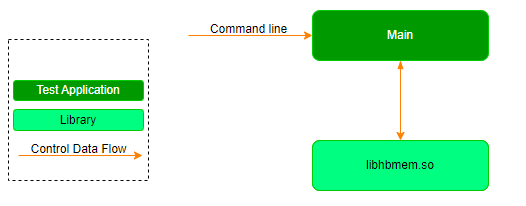

软件架构说明

本文基于libhbmem API实现，调用libhbmem提供的API，实现不同buffer类型的内存申请和进程间共享。

代码位置及目录结构

1. 代码位置：/test/samples/platform_samples/source/S83_Sample/S83E02_Communication/libhbmem_sample

2. 目录结构：

├── Kconfig

├── Makefile

├── Makefile.in

└── src

├── Makefile

├── sample_alloc.c

├── sample.c

├── sample_common.c

├── sample_common.h

├── sample_pool.c

├── sample_queue.c

├── sample_share.c

└── sample_share_pool.c

根目录包含Kconfig和外部接口的makefile；

Kconfig用于控制该demo是否加入整体编译；

src目录下的makefile用于src目录下的编译；

src目录下的sample.c是main入口的所在文件。

API流程说明

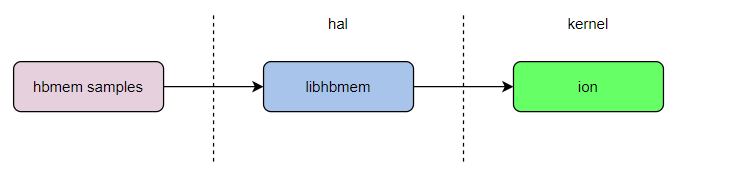

libhbmem库调用ion进行buffer分配

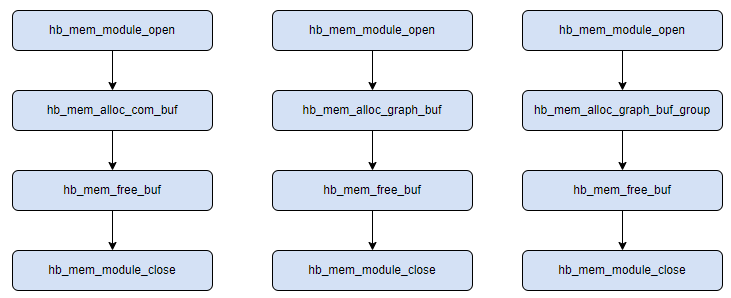

com buffer、graph buffer、graphic buffer group 分配流程图

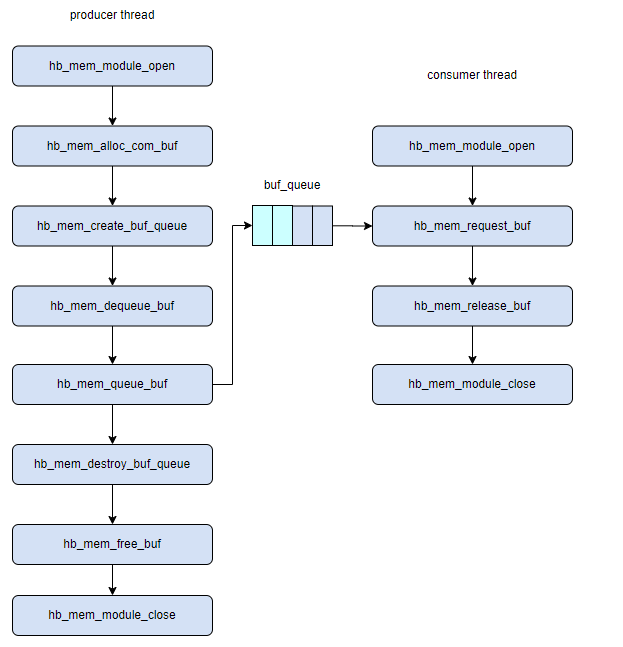

queue使用流程图

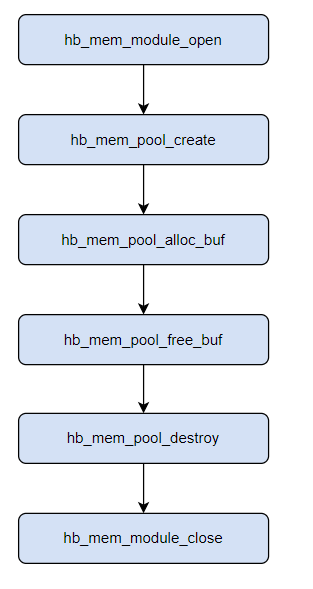

pool使用流程图

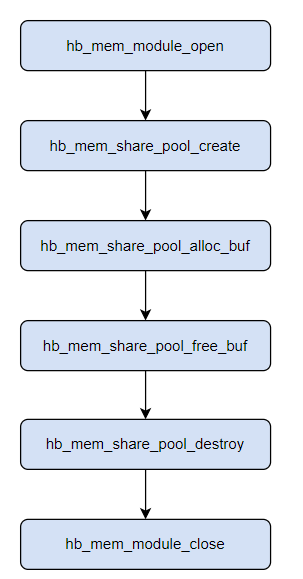

share pool 使用流程图

编译环境

本文的编译环境使用SDK中的build工具，请参考: :doc:`Build环境建立 `。

编译说明

本文主要依赖libhbmem提供的头文件：

#include

编译依赖的库有如下：

LIBS += -lhbmem -lpthread -lalog -ldl -lstdc++

编译命令

# 进入SDK所有目录{sdk_dir}，并source构建环境（参见上）。

# 编译本sample:

bdm libhbmem-sample

# 输出文件:

{sdk_dir}/out/debug-gcc_{gcc_version}/build/test/samples/platform_samples/source/S83_Sample/S83E02_Communication/libhbmem_sample

运行

支持平台

- Matrix 6E/M

运行方法

创建com buffer

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 1

创建cache，noncached com buffer，赋值，比较耗时

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 2

在各个heaps里，创建com buffer

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 3

创建graph buffer

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 4

在各个heaps里，创建graph buffer

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 5

创建graph buffer group

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 6

在各个heaps里，创建graph buffer group

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 7

进程内common buffer共享

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 8

进程内common buffer共享，consume_cnt

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 9

进程间common buffer共享

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 10

进程内graphic buffer共享

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 11

进程内graphic buffer共享，consume_cnt

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 12

进程间graphic buffer共享

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 13

进程内graphic buffer group共享

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 14

进程内graphic buffer group共享，consume_cnt

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 15

进程间graphic buffer group共享

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 16

进程间share pool 共享

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 17

share pool使用

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 18

buffer queue 使用

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 19

pool使用

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 20

在graphic buffer与common buffer之间实现buffer转换

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 21

增加common buffer用户态引用计数

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 22

增加graphic buffer用户态引用计数

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 23

运行参数说明

- -m 指定sample用例，具体见运行结果展示

测试结果说明

- 如果log最后以xxxx done结尾，则表示sample执行成功

运行结果展示

创建com buffer

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 1

sample_mode = 1

=================================================

Ready to sample_alloc_com_buf

alloc com buf, share_id: 16

[1752:1752] Do system command cat /sys/kernel/debug/ion/clients/1752*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

ion_cma: 400000 : 1 : 1 : fd48e1ab : 3: 16 : 1

[1752:1752] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 1752 | grep -w libhbmem_sample.

libhbmem_sample 1752 4194304

libhbmem_sample 1752 other 4194304 0

[1752:1752] Result 0.

free com buf

[1752:1752] Do system command cat /sys/kernel/debug/ion/clients/1752*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

[1752:1752] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 1752 | grep -w libhbmem_sample.

[1752:1752] Result 256.

sample_alloc_com_buf done

=================================================

创建cache，noncached com buffer，赋值，比较耗时

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 2

sample_mode = 2

=================================================

Ready to sample_alloc_com_buf_with_cache

memset uncached buf(size:4194304) use time: 820751

memset cached buf(size:4194304) use time: 578361

sample_alloc_com_buf_with_cache done

=================================================

在各个heaps里，创建com buffer

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 3

sample_mode = 3

=================================================

Ready to sample_alloc_com_buf_with_heapmask

alloc com buf form ion_cma, size: 1048576

[1794:1794] Do system command cat /sys/kernel/debug/ion/clients/1794*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

ion_cma: 100000 : 1 : 1 : 8a533f1b : 3: 16 : 1

[1794:1794] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 1794 | grep -w libhbmem_sample.

libhbmem_sample 1794 1048576

libhbmem_sample 1794 other 1048576 0

[1794:1794] Result 0.

free com buf

alloc com buf form carveout, size: 1048576

[1794:1794] Do system command cat /sys/kernel/debug/ion/clients/1794*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

carveout: 100000 : 1 : 1 : 8a533f1b : 3: 16 : 1

[1794:1794] Do system command cat /sys/kernel/debug/ion/heaps/carveout | grep -w 1794 | grep -w libhbmem_sample.

libhbmem_sample 1794 1048576

libhbmem_sample 1794 other 1048576 0

[1794:1794] Result 0.

free com buf

alloc com buf form custom, size: 1048576

[1794:1794] Do system command cat /sys/kernel/debug/ion/clients/1794*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

custom: 100000 : 1 : 1 : 8a533f1b : 3: 16 : 1

[1794:1794] Do system command cat /sys/kernel/debug/ion/heaps/custom | grep -w 1794 | grep -w libhbmem_sample.

libhbmem_sample 1794 1048576

libhbmem_sample 1794 other 1048576 0

[1794:1794] Result 0.

free com buf

alloc com buf form cma_reserved, size: 1048576

[1794:1794] Do system command cat /sys/kernel/debug/ion/clients/1794*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

cma_reserved: 100000 : 1 : 1 : 8a533f1b : 3: 16 : 1

[1794:1794] Do system command cat /sys/kernel/debug/ion/heaps/cma_reserved | grep -w 1794 | grep -w libhbmem_sample.

libhbmem_sample 1794 1048576

libhbmem_sample 1794 other 1048576 0

[1794:1794] Result 0.

free com buf

sample_alloc_com_buf_with_heapmask done

=================================================

创建graph buffer

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 4

sample_mode = 4

=================================================

Ready to sample_alloc_graph_buf

graph_buf.plane_cnt: 2, graph_buf.format: 8, graph_buf.width: 1280, graph_buf.height: 720, graph_buf.stride: 0, graph_buf.vstride: 0, graph_buf.stride: 0, graph_buf.flags: 17

[1095435:1095435] Do system command cat /sys/kernel/debug/ion/clients/1095435*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

ion_cma: f0000 : 1 : 1 : ffff0003a8385800 : 3: 9 : 1

ion_cma: 80000 : 1 : 1 : ffff0003a8385b00 : 3: 10 : 1

-------------------------------------------------------------------------

total 170000

-------------------------------------------------------------------------

[1095435:1095435] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 1095435 | grep -w libhbmem_sample.

[1095435:1095435] Result 256.

sample_alloc_graph_buf done

=================================================

在各个heaps里，创建graph buffer

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 5

sample_mode = 5

=================================================

Ready to sample_alloc_graph_buf_with_heapmask

alloc graph buf form ion_cma

graph_buf.plane_cnt: 2, graph_buf.format: 8, graph_buf.width: 1280, graph_buf.height: 720, graph_buf.stride: 0, graph_buf.vstride: 0, graph_buf.stride: 0, graph_buf.flags: 17

[1095441:1095441] Do system command cat /sys/kernel/debug/ion/clients/1095441*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

ion_cma: 80000 : 1 : 1 : ffff0003aad52800 : 3: 10 : 1

ion_cma: f0000 : 1 : 1 : ffff0003aad56400 : 3: 9 : 1

-------------------------------------------------------------------------

total 170000

-------------------------------------------------------------------------

[1095441:1095441] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 1095441 | grep -w libhbmem_sample.

[1095441:1095441] Result 256.

alloc graph buf form carveout

graph_buf.plane_cnt: 2, graph_buf.format: 8, graph_buf.width: 1280, graph_buf.height: 720, graph_buf.stride: 0, graph_buf.vstride: 0, graph_buf.stride: 0, graph_buf.flags: 4294967313

[1095441:1095441] Do system command cat /sys/kernel/debug/ion/clients/1095441*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

carveout: 80000 : 1 : 1 : ffff0003aad5b200 : 3: 10 : 1

carveout: f0000 : 1 : 1 : ffff0003aad5ca00 : 3: 9 : 1

-------------------------------------------------------------------------

total 170000

-------------------------------------------------------------------------

[1095441:1095441] Do system command cat /sys/kernel/debug/ion/heaps/carveout | grep -w 1095441 | grep -w libhbmem_sample.

[1095441:1095441] Result 256.

alloc graph buf form cma_reserved

graph_buf.plane_cnt: 2, graph_buf.format: 8, graph_buf.width: 1280, graph_buf.height: 720, graph_buf.stride: 0, graph_buf.vstride: 0, graph_buf.stride: 0, graph_buf.flags: 17179869201

[1095441:1095441] Do system command cat /sys/kernel/debug/ion/clients/1095441*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

cma_reserved: f0000 : 1 : 1 : ffff0003aad53100 : 3: 9 : 1

cma_reserved: 80000 : 1 : 1 : ffff0003aad5f100 : 3: 10 : 1

-------------------------------------------------------------------------

total 170000

-------------------------------------------------------------------------

[1095441:1095441] Do system command cat /sys/kernel/debug/ion/heaps/cma_reserved | grep -w 1095441 | grep -w libhbmem_sample.

[1095441:1095441] Result 256.

sample_alloc_graph_buf_with_heapmask done

=================================================

创建graph buffer group

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 6

sample_mode = 6

=================================================

Ready to sample_alloc_graph_buf_with_heapmask

[35896:35896] Do system command cat /sys/kernel/debug/ion/clients/35896*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

ion_cma: 80000 : 1 : 1 : ffff0003be590a00 : 3: 15 : 1

ion_cma: 80000 : 1 : 1 : ffff0003be591000 : 3: 13 : 1

ion_cma: f0000 : 1 : 1 : ffff0003be591300 : 3: 8 : 1

ion_cma: 80000 : 1 : 1 : ffff0003be591600 : 3: 19 : 1

ion_cma: 80000 : 1 : 1 : ffff0003be592500 : 3: 11 : 1

ion_cma: 80000 : 1 : 1 : ffff0003be593700 : 3: 17 : 1

ion_cma: f0000 : 1 : 1 : ffff0003be593d00 : 3: 18 : 1

ion_cma: 80000 : 1 : 1 : ffff0003be594000 : 3: 9 : 1

ion_cma: f0000 : 1 : 1 : ffff0003be594300 : 3: 12 : 1

ion_cma: f0000 : 1 : 1 : ffff0003be594600 : 3: 14 : 1

ion_cma: f0000 : 1 : 1 : ffff0003be594900 : 3: 20 : 1

ion_cma: 80000 : 1 : 1 : ffff0003be594c00 : 3: 21 : 1

ion_cma: f0000 : 1 : 1 : ffff0003be595500 : 3: 10 : 1

ion_cma: f0000 : 1 : 1 : ffff0003be596100 : 3: 22 : 1

ion_cma: f0000 : 1 : 1 : ffff0003be597300 : 3: 16 : 1

ion_cma: 80000 : 1 : 1 : ffff0003be59df00 : 3: 23 : 1

-------------------------------------------------------------------------

total b80000

-------------------------------------------------------------------------

[35896:35896] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 35896 | grep -w libhbmem_sample.

[35896:35896] Result 256.

sample_alloc_graph_buf_group done

=================================================

在各个heaps里，创建graph buffer group

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 7

sample_mode = 7

=================================================

Ready to sample_alloc_graph_buf_group_heapmask

alloc graph buf group form ion_cma

[35907:35907] Do system command cat /sys/kernel/debug/ion/clients/35907*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

ion_cma: 80000 : 1 : 1 : ffff0003be594f00 : 3: 17 : 1

ion_cma: 80000 : 1 : 1 : ffff0003be596700 : 3: 11 : 1

ion_cma: f0000 : 1 : 1 : ffff0003be596d00 : 3: 14 : 1

ion_cma: 80000 : 1 : 1 : ffff0003be597900 : 3: 13 : 1

ion_cma: f0000 : 1 : 1 : ffff0003be598800 : 3: 12 : 1

ion_cma: 80000 : 1 : 1 : ffff0003be59c400 : 3: 9 : 1

ion_cma: f0000 : 1 : 1 : ffff0003be59d600 : 3: 10 : 1

ion_cma: 80000 : 1 : 1 : ffff0003be59e500 : 3: 15 : 1

ion_cma: f0000 : 1 : 1 : ffff0003be59e800 : 3: 8 : 1

ion_cma: f0000 : 1 : 1 : ffff0003be59f400 : 3: 16 : 1

ion_cma: 80000 : 1 : 1 : ffff0003f0a23a00 : 3: 21 : 1

ion_cma: f0000 : 1 : 1 : ffff0003f0a26d00 : 3: 20 : 1

ion_cma: 80000 : 1 : 1 : ffff0003f0a2a000 : 3: 23 : 1

ion_cma: f0000 : 1 : 1 : ffff0003f0a2d300 : 3: 18 : 1

ion_cma: f0000 : 1 : 1 : ffff0003f0a2d600 : 3: 22 : 1

ion_cma: 80000 : 1 : 1 : ffff0003f0a2df00 : 3: 19 : 1

-------------------------------------------------------------------------

total b80000

-------------------------------------------------------------------------

[35907:35907] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 35907 | grep -w libhbmem_sample.

[35907:35907] Result 256.

alloc graph buf group form carveout

[35907:35907] Do system command cat /sys/kernel/debug/ion/clients/35907*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

carveout: f0000 : 1 : 1 : ffff0003f0a20400 : 3: 22 : 1

carveout: f0000 : 1 : 1 : ffff0003f0a21900 : 3: 18 : 1

carveout: f0000 : 1 : 1 : ffff0003f0a21c00 : 3: 20 : 1

carveout: 80000 : 1 : 1 : ffff0003f0a24c00 : 3: 11 : 1

carveout: f0000 : 1 : 1 : ffff0003f0a25200 : 3: 12 : 1

carveout: 80000 : 1 : 1 : ffff0003f0a25e00 : 3: 17 : 1

carveout: f0000 : 1 : 1 : ffff0003f0a26700 : 3: 8 : 1

carveout: 80000 : 1 : 1 : ffff0003f0a26a00 : 3: 19 : 1

carveout: f0000 : 1 : 1 : ffff0003f0a27000 : 3: 16 : 1

carveout: 80000 : 1 : 1 : ffff0003f0a27f00 : 3: 21 : 1

carveout: 80000 : 1 : 1 : ffff0003f0a29100 : 3: 15 : 1

carveout: 80000 : 1 : 1 : ffff0003f0a2a900 : 3: 13 : 1

carveout: f0000 : 1 : 1 : ffff0003f0a2ac00 : 3: 14 : 1

carveout: 80000 : 1 : 1 : ffff0003f0a2d900 : 3: 9 : 1

carveout: f0000 : 1 : 1 : ffff0003f0a2f100 : 3: 10 : 1

carveout: 80000 : 1 : 1 : ffff0003f0a2fa00 : 3: 23 : 1

-------------------------------------------------------------------------

total b80000

-------------------------------------------------------------------------

[35907:35907] Do system command cat /sys/kernel/debug/ion/heaps/carveout | grep -w 35907 | grep -w libhbmem_sample.

[35907:35907] Result 256.

alloc graph buf group form cma_reserved

[35907:35907] Do system command cat /sys/kernel/debug/ion/clients/35907*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

carveout: 80000 : 1 : 1 : ffff0003f0a20100 : 3: 19 : 1

carveout: f0000 : 1 : 1 : ffff0003f0a20700 : 3: 22 : 1

carveout: 80000 : 1 : 1 : ffff0003f0a21600 : 3: 21 : 1

carveout: f0000 : 1 : 1 : ffff0003f0a22e00 : 3: 16 : 1

carveout: 80000 : 1 : 1 : ffff0003f0a23400 : 3: 23 : 1

carveout: f0000 : 1 : 1 : ffff0003f0a24300 : 3: 8 : 1

carveout: f0000 : 1 : 1 : ffff0003f0a2be00 : 3: 10 : 1

carveout: f0000 : 1 : 1 : ffff0003f0a2ca00 : 3: 18 : 1

carveout: f0000 : 1 : 1 : ffff0003f0a2dc00 : 3: 20 : 1

carveout: 80000 : 1 : 1 : ffff0003f0a2e200 : 3: 11 : 1

carveout: 80000 : 1 : 1 : ffff0003f0a2e500 : 3: 13 : 1

carveout: f0000 : 1 : 1 : ffff0003f0a2e800 : 3: 12 : 1

carveout: 80000 : 1 : 1 : ffff0003f0a2eb00 : 3: 17 : 1

carveout: f0000 : 1 : 1 : ffff0003f0a2f400 : 3: 14 : 1

carveout: 80000 : 1 : 1 : ffff0003f0a2f700 : 3: 9 : 1

carveout: 80000 : 1 : 1 : ffff0003f0a2fd00 : 3: 15 : 1

-------------------------------------------------------------------------

total b80000

-------------------------------------------------------------------------

[35907:35907] Do system command cat /sys/kernel/debug/ion/heaps/* | grep -w 35907 | grep -w libhbmem_sample.

[35907:35907] Result 256.

sample_alloc_graph_buf_group_heapmask done

=================================================

进程内common buffer共享

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 8

sample_mode = 8

=================================================

Ready to sample_share_com_buffer

alloc com buf, share_id: 9

import com buf, share_id: 9

[1095457:1095457] Do system command cat /sys/kernel/debug/ion/clients/1095457*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

ion_cma: 10000 : 2 : 2 : ffff0003aad55b00 : 4: 9 : 2

-------------------------------------------------------------------------

total 10000

-------------------------------------------------------------------------

[1095457:1095457] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 1095457 | grep -w libhbmem_sample.

[1095457:1095457] Result 256.

free com buf

[1095457:1095457] Do system command cat /sys/kernel/debug/ion/clients/1095457*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

ion_cma: 10000 : 1 : 1 : ffff0003aad55b00 : 3: 9 : 1

-------------------------------------------------------------------------

total 10000

-------------------------------------------------------------------------

[1095457:1095457] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 1095457 | grep -w libhbmem_sample.

[1095457:1095457] Result 256.

free import buf

[1095457:1095457] Do system command cat /sys/kernel/debug/ion/clients/1095457*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

-------------------------------------------------------------------------

total 0

-------------------------------------------------------------------------

[1095457:1095457] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 1095457 | grep -w libhbmem_sample.

[1095457:1095457] Result 256.

sample_share_com_buffer done

=================================================

进程内common buffer共享，consume_cnt

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 9

sample_mode = 9

=================================================

Ready to sample_share_com_buffer_use_consume_cnt

in_buf used by process[1095474]

share_consume_cnt: 1

hb_mem_wait_consume_status timeout

sample_share_com_buffer_use_consume_cnt done

=================================================

进程间common buffer共享

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 10

sample_mode = 10

=================================================

Ready to sample_share_com_buffer_fork_process_scenario

alloc graph buf form ion_cma

socketpair: 0

[30594:317] In parent process.

[30595:30594] In child process.

parent write share buf: parent test common buf share.

share_consume_cnt: 0

[30594:317] parent send msg 1

[30595:30594] child recv msg 1

child read share buf: parent test common buf share.

share_consume_cnt: 1

child write share buf: child test common buf share.

[30595:30594] child send msg 2

[30594:317] parent recv msg 2

parent read share buf: child test common buf share.

[30594:317] parent send msg 3

[30595:30594] child recv msg 3

share_consume_cnt: 0

[30594:317] parent quit

[30595:30594] child quit

alloc graph buf form carveout

socketpair: 0

[30594:317] In parent process.

[30596:30594] In child process.

parent write share buf: parent test common buf share.

share_consume_cnt: 0

[30594:317] parent send msg 1

[30596:30594] child recv msg 1

child read share buf: parent test common buf share.

share_consume_cnt: 1

child write share buf: child test common buf share.

[30596:30594] child send msg 2

[30594:317] parent recv msg 2

parent read share buf: child test common buf share.

[30594:317] parent send msg 3

[30596:30594] child recv msg 3

share_consume_cnt: 0

[30594:317] parent quit

[30596:30594] child quit

alloc graph buf form cma_reserved

socketpair: 0

[30594:317] In parent process.

[30597:30594] In child process.

parent write share buf: parent test common buf share.

share_consume_cnt: 0

[30594:317] parent send msg 1

[30597:30594] child recv msg 1

child read share buf: parent test common buf share.

share_consume_cnt: 1

child write share buf: child test common buf share.

[30597:30594] child send msg 2

[30594:317] parent recv msg 2

parent read share buf: child test common buf share.

[30594:317] parent send msg 3

[30597:30594] child recv msg 3

share_consume_cnt: 0

[30594:317] parent quit

[30597:30594] child quit

sample_share_com_buffer_fork_process_scenario done

=================================================

进程内graphic buffer共享

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 11

sample_mode = 11

=================================================

Ready to sample_share_graph_buffer

alloc graph buf, share_id0: 8, share_id1: 9, share_id2: 9

import graph buf, share_id0: 8, share_id1: 9, share_id2: 9

[35929:35929] Do system command cat /sys/kernel/debug/ion/clients/35929*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

ion_cma: 80000 : 2 : 2 : ffff0003f0a25500 : 4: 9 : 2

ion_cma: f0000 : 2 : 2 : ffff0003f0a2d000 : 4: 8 : 2

-------------------------------------------------------------------------

total 170000

-------------------------------------------------------------------------

[35929:35929] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 35929 | grep -w libhbmem_sample.

[35929:35929] Result 256.

free graph buf

[35929:35929] Do system command cat /sys/kernel/debug/ion/clients/35929*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

ion_cma: 80000 : 1 : 1 : ffff0003f0a25500 : 3: 9 : 1

ion_cma: f0000 : 1 : 1 : ffff0003f0a2d000 : 3: 8 : 1

-------------------------------------------------------------------------

total 170000

-------------------------------------------------------------------------

[35929:35929] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 35929 | grep -w libhbmem_sample.

[35929:35929] Result 256.

free import buf

[35929:35929] Do system command cat /sys/kernel/debug/ion/clients/35929*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

-------------------------------------------------------------------------

total 0

-------------------------------------------------------------------------

[35929:35929] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 35929 | grep -w libhbmem_sample.

[35929:35929] Result 256.

sample_share_graph_buffer done

=================================================

进程内graphic buffer共享，consume_cnt

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 12

sample_mode = 12

=================================================

Ready to sample_share_graph_buffer_use_consume_cnt

in_buf used by process[35947]

share_consume_cnt: 1

hb_mem_wait_consume_status timeout

sample_share_graph_buffer_use_consume_cnt done

=================================================

进程间graphic buffer共享

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 13

sample_mode = 13

=================================================

Ready to sample_share_graph_buffer_fork_process_scenario

alloc graph buf form ion_cma

socketpair: 0

[30599:317] In parent process.

[30600:30599] In child process.

parent write share buf: parent test graph buf share.

share_consume_cnt: 0

[30599:317] parent send msg 1

[30600:30599] child recv msg 1

child read share buf: parent test graph buf share.

share_consume_cnt: 1

child write share buf: child test common buf share.

[30600:30599] child send msg 2

[30599:317] parent recv msg 2

parent read share buf: child test common buf share.

[30599:317] parent send msg 3

[30600:30599] child recv msg 3

share_consume_cnt: 0

[30599:317] parent quit

[30600:30599] child quit

alloc graph buf form carveout

socketpair: 0

[30599:317] In parent process.

[30601:30599] In child process.

parent write share buf: parent test graph buf share.

share_consume_cnt: 0

[30599:317] parent send msg 1

[30601:30599] child recv msg 1

child read share buf: parent test graph buf share.

share_consume_cnt: 1

child write share buf: child test common buf share.

[30601:30599] child send msg 2

[30599:317] parent recv msg 2

parent read share buf: child test common buf share.

[30599:317] parent send msg 3

[30601:30599] child recv msg 3

share_consume_cnt: 0

[30599:317] parent quit

[30601:30599] child quit

alloc graph buf form cma_reserved

socketpair: 0

[30599:317] In parent process.

[30602:30599] In child process.

parent write share buf: parent test graph buf share.

share_consume_cnt: 0

[30599:317] parent send msg 1

[30602:30599] child recv msg 1

child read share buf: parent test graph buf share.

share_consume_cnt: 1

child write share buf: child test common buf share.

[30602:30599] child send msg 2

[30599:317] parent recv msg 2

parent read share buf: child test common buf share.

[30599:317] parent send msg 3

[30602:30599] child recv msg 3

share_consume_cnt: 0

[30599:317] parent quit

[30602:30599] child quit

sample_share_graph_buffer_fork_process_scenario done

=================================================

进程内graphic buffer group共享

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 14

sample_mode = 14

=================================================

Ready to sample_share_graph_buffer_group

[48474:48474] Do system command cat /sys/kernel/debug/ion/clients/48474*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

ion_cma: 80000 : 2 : 2 : ffff0003ac940700 : 3: 12 : 2

ion_cma: f0000 : 2 : 2 : ffff0003ac942500 : 3: 11 : 2

ion_cma: f0000 : 2 : 2 : ffff0003ac942800 : 3: 21 : 2

ion_cma: 80000 : 2 : 2 : ffff0003ac942b00 : 3: 18 : 2

ion_cma: 80000 : 2 : 2 : ffff0003ac943d00 : 3: 24 : 2

ion_cma: 80000 : 2 : 2 : ffff0003ac944300 : 3: 14 : 2

ion_cma: f0000 : 2 : 2 : ffff0003ac944600 : 3: 23 : 2

ion_cma: f0000 : 2 : 2 : ffff0003ac946a00 : 3: 9 : 2

ion_cma: 80000 : 2 : 2 : ffff0003ac947600 : 3: 20 : 2

ion_cma: 80000 : 2 : 2 : ffff0003ac949700 : 3: 10 : 2

ion_cma: f0000 : 2 : 2 : ffff0003ac94a000 : 3: 17 : 2

ion_cma: f0000 : 2 : 2 : ffff0003ac94c400 : 3: 19 : 2

ion_cma: f0000 : 2 : 2 : ffff0003ac94cd00 : 3: 13 : 2

ion_cma: 80000 : 2 : 2 : ffff0003ac94d600 : 3: 22 : 2

ion_cma: f0000 : 2 : 2 : ffff0003ac94df00 : 3: 15 : 2

ion_cma: 80000 : 2 : 2 : ffff0003ac94f400 : 3: 16 : 2

-------------------------------------------------------------------------

total b80000

-------------------------------------------------------------------------

[48474:48474] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 48474 | grep -w libhbmem_sample.

[48474:48474] Result 256.

free graph buf group

[48474:48474] Do system command cat /sys/kernel/debug/ion/clients/48474*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

ion_cma: 80000 : 1 : 1 : ffff0003ac940700 : 3: 12 : 1

ion_cma: f0000 : 1 : 1 : ffff0003ac942500 : 3: 11 : 1

ion_cma: f0000 : 1 : 1 : ffff0003ac942800 : 3: 21 : 1

ion_cma: 80000 : 1 : 1 : ffff0003ac942b00 : 3: 18 : 1

ion_cma: 80000 : 1 : 1 : ffff0003ac943d00 : 3: 24 : 1

ion_cma: 80000 : 1 : 1 : ffff0003ac944300 : 3: 14 : 1

ion_cma: f0000 : 1 : 1 : ffff0003ac944600 : 3: 23 : 1

ion_cma: f0000 : 1 : 1 : ffff0003ac946a00 : 3: 9 : 1

ion_cma: 80000 : 1 : 1 : ffff0003ac947600 : 3: 20 : 1

ion_cma: 80000 : 1 : 1 : ffff0003ac949700 : 3: 10 : 1

ion_cma: f0000 : 1 : 1 : ffff0003ac94a000 : 3: 17 : 1

ion_cma: f0000 : 1 : 1 : ffff0003ac94c400 : 3: 19 : 1

ion_cma: f0000 : 1 : 1 : ffff0003ac94cd00 : 3: 13 : 1

ion_cma: 80000 : 1 : 1 : ffff0003ac94d600 : 3: 22 : 1

ion_cma: f0000 : 1 : 1 : ffff0003ac94df00 : 3: 15 : 1

ion_cma: 80000 : 1 : 1 : ffff0003ac94f400 : 3: 16 : 1

-------------------------------------------------------------------------

total b80000

-------------------------------------------------------------------------

[48474:48474] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 48474 | grep -w libhbmem_sample.

[48474:48474] Result 256.

free import buf

[48474:48474] Do system command cat /sys/kernel/debug/ion/clients/48474*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

-------------------------------------------------------------------------

total 0

-------------------------------------------------------------------------

[48474:48474] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 48474 | grep -w libhbmem_sample.

[48474:48474] Result 256.

sample_share_graph_buffer_group done

=================================================

进程内graphic buffer group共享，consume_cnt

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 15

sample_mode = 15

=================================================

Ready to sample_share_graph_buffer_group_use_consume_cnt

in_buf used by process[48659]

share_consume_cnt: 1

hb_mem_wait_consume_status timeout

sample_share_graph_buffer_group_use_consume_cnt done

=================================================

进程间graphic buffer group共享

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 16

sample_mode = 16

=================================================

Ready to sample_share_graph_buffer_group_fork_process_scenario

socketpair: 0

[48662:35245] In parent process.

[48663:48662] In child process.

parent write share buf: parent test graph buf share.

share_consume_cnt: 0

[48662:35245] parent send msg 1

[48663:48662] child recv msg 1

child read share buf: parent test graph buf share.

share_consume_cnt: 1

child write share buf: child test common buf share.

[48663:48662] child send msg 2

[48662:35245] parent recv msg 2

parent read share buf: child test common buf share.

[48662:35245] parent send msg 3

[48663:48662] child recv msg 3

share_consume_cnt: 0

[48662:35245] parent quit

[48663:48662] child quit

sample_share_graph_buffer_group_fork_process_scenario done

=================================================

进程间share pool 共享

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 17

sample_mode = 17

=================================================

Ready to sample_share_pool_fork_process_scenario

[1095477:816] In parent process.

[1095478:1095477] In child process.

[1095477:1095477] Do system command cat /sys/kernel/debug/ion/clients/1095477*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

ion_cma: 20000 : 1 : 1 : ffff0003aad50400 : 3: 12 : 1

ion_cma: 20000 : 1 : 1 : ffff0003aad50a00 : 3: 11 : 1

ion_cma: 20000 : 1 : 1 : ffff0003aad54c00 : 3: 9 : 1

ion_cma: 20000 : 1 : 1 : ffff0003aad56700 : 3: 10 : 1

ion_cma: 20000 : 1 : 1 : ffff0003aad5ac00 : 3: 13 : 1

-------------------------------------------------------------------------

total a0000

-------------------------------------------------------------------------

[1095477:1095477] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 1095477 | grep -w libhbmem_sample.

[1095477:1095477] Result 256.

hb_mem_share_pool_alloc_buf 0 0xffffafa10000

hb_mem_share_pool_alloc_buf 1 0xffffafa30000

hb_mem_share_pool_alloc_buf 2 0xffffafa50000

hb_mem_share_pool_alloc_buf 3 0xffffafa70000

hb_mem_share_pool_alloc_buf 4 0xffffafa90000

[1095477:816] parent send msg 1

[1095478:1095477] child recv msg 1

[1095478:1095477] child send msg 2

[1095477:816] parent recv msg 2

free 0 0xffffafa10000

[1095477:816] parent pool.avail_buf_cnt: 0

free 1 0xffffafa30000

[1095477:816] parent pool.avail_buf_cnt: 1

free 2 0xffffafa50000

[1095477:816] parent pool.avail_buf_cnt: 2

free 3 0xffffafa70000

[1095477:816] parent pool.avail_buf_cnt: 3

free 4 0xffffafa90000

[1095477:816] parent pool.avail_buf_cnt: 4

[1095477:816] parent send msg 3

[1095478:1095477] child recv msg 3

[1095478:1095477] child send msg 4

[1095477:816] parent recv msg 4

[1095477:816] parent pool.avail_buf_cnt: 5

[1095478:1095477] child quit

[1095477:816] parent quit

sample_share_pool_fork_process_scenario done

=================================================

share pool使用

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 18

sample_mode = 18

=================================================

Ready to sample_share_pool

pool.avail_buf_cnt: 9

pool.avail_buf_cnt: 8

pool.avail_buf_cnt: 7

pool.avail_buf_cnt: 6

pool.avail_buf_cnt: 5

pool.avail_buf_cnt: 4

pool.avail_buf_cnt: 3

pool.avail_buf_cnt: 2

pool.avail_buf_cnt: 1

pool.avail_buf_cnt: 0

pool.avail_buf_cnt: 1

pool.avail_buf_cnt: 2

pool.avail_buf_cnt: 3

pool.avail_buf_cnt: 4

pool.avail_buf_cnt: 5

pool.avail_buf_cnt: 6

pool.avail_buf_cnt: 7

pool.avail_buf_cnt: 8

pool.avail_buf_cnt: 9

pool.avail_buf_cnt: 10

sample_share_pool done

=================================================

buffer queue 使用

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 19

sample_mode = 19

=================================================

Ready to sample_queue_producer_consumer

[1095487:1095487] Queue test case.

[1095487:1095488] Start test 37775453715.

[1095487:1095488] out buffer share id 9.

[1095487:1095488] out buffer share id 10.

[1095487:1095488] out buffer share id 11.

[1095487:1095488] out buffer share id 12.

[1095487:1095488] out buffer share id 13.

[1095487:1095488] out buffer share id 14.

[1095487:1095488] out buffer share id 15.

[1095487:1095488] out buffer share id 16.

[1095487:1095488] out buffer share id 17.

[1095487:1095488] out buffer share id 18.

[1095487:1095488] out buffer share id 19.

[1095487:1095488] out buffer share id 20.

[1095487:1095488] out buffer share id 21.

[1095487:1095488] out buffer share id 22.

[1095487:1095488] out buffer share id 23.

[1095487:1095488] out buffer share id 24.

[1095487:1095488] out buffer share id 9.

[1095487:1095488] out buffer share id 10.

[1095487:1095488] out buffer share id 11.

[1095487:1095488] out buffer share id 12.

[1095487:1095488] out buffer share id 13.

[1095487:1095488] out buffer share id 14.

[1095487:1095488] out buffer share id 15.

[1095487:1095488] out buffer share id 16.

[1095487:1095488] out buffer share id 17.

[1095487:1095488] out buffer share id 18.

[1095487:1095488] out buffer share id 19.

[1095487:1095488] out buffer share id 20.

[1095487:1095488] out buffer share id 21.

[1095487:1095488] out buffer share id 22.

[1095487:1095488] out buffer share id 23.

[1095487:1095488] out buffer share id 24.

[1095487:1095488] out buffer share id 9.

[1095487:1095488] out buffer share id 10.

[1095487:1095488] out buffer share id 11.

[1095487:1095488] out buffer share id 12.

[1095487:1095488] out buffer share id 13.

[1095487:1095488] out buffer share id 14.

[1095487:1095488] out buffer share id 15.

[1095487:1095488] out buffer share id 16.

[1095487:1095488] out buffer share id 17.

[1095487:1095488] out buffer share id 18.

[1095487:1095488] out buffer share id 19.

[1095487:1095488] out buffer share id 20.

[1095487:1095488] out buffer share id 21.

[1095487:1095488] out buffer share id 22.

[1095487:1095488] out buffer share id 23.

[1095487:1095488] out buffer share id 24.

[1095487:1095488] out buffer share id 9.

[1095487:1095488] out buffer share id 10.

[1095487:1095488] out buffer share id 11.

[1095487:1095488] out buffer share id 12.

[1095487:1095488] out buffer share id 13.

[1095487:1095488] out buffer share id 14.

[1095487:1095488] out buffer share id 15.

[1095487:1095488] out buffer share id 16.

[1095487:1095488] out buffer share id 17.

[1095487:1095488] out buffer share id 18.

[1095487:1095488] out buffer share id 19.

[1095487:1095488] out buffer share id 20.

[1095487:1095488] out buffer share id 21.

[1095487:1095488] out buffer share id 22.

[1095487:1095488] out buffer share id 23.

[1095487:1095488] out buffer share id 24.

[1095487:1095488] out buffer share id 9.

[1095487:1095488] out buffer share id 10.

[1095487:1095488] out buffer share id 11.

[1095487:1095488] out buffer share id 12.

[1095487:1095488] out buffer share id 13.

[1095487:1095488] out buffer share id 14.

[1095487:1095488] out buffer share id 15.

[1095487:1095488] out buffer share id 16.

[1095487:1095488] out buffer share id 17.

[1095487:1095488] out buffer share id 18.

[1095487:1095488] out buffer share id 19.

[1095487:1095488] out buffer share id 20.

[1095487:1095488] out buffer share id 21.

[1095487:1095488] out buffer share id 22.

[1095487:1095488] out buffer share id 23.

[1095487:1095488] out buffer share id 24.

[1095487:1095488] out buffer share id 9.

[1095487:1095488] out buffer share id 10.

[1095487:1095488] out buffer share id 11.

[1095487:1095488] out buffer share id 12.

[1095487:1095488] out buffer share id 13.

[1095487:1095488] out buffer share id 14.

[1095487:1095488] out buffer share id 15.

[1095487:1095488] out buffer share id 16.

[1095487:1095488] out buffer share id 17.

[1095487:1095488] out buffer share id 18.

[1095487:1095488] out buffer share id 19.

[1095487:1095488] out buffer share id 20.

[1095487:1095488] out buffer share id 21.

[1095487:1095488] out buffer share id 22.

[1095487:1095488] out buffer share id 23.

[1095487:1095488] out buffer share id 24.

[1095487:1095488] out buffer share id 9.

[1095487:1095488] out buffer share id 10.

[1095487:1095488] out buffer share id 11.

[1095487:1095488] out buffer share id 12.

[1095487:1095488] End test 37776461140, interval 1007425.

[1095487:1095488] thread quits.

[1095487:1095487] thread return = 281472846730960

sample_queue_producer_consumer done

=================================================

pool使用

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 20

sample_mode = 20

=================================================

Ready to sample_pool

[1095489:1095489] Do system command cat /sys/kernel/debug/ion/clients/1095489*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

ion_cma: a00000 : 1 : 1 : ffff0003e02b4c00 : 3: 9 : 1

-------------------------------------------------------------------------

total a00000

-------------------------------------------------------------------------

[1095489:1095489] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 1095489 | grep -w libhbmem_sample.

[1095489:1095489] Result 256.

[ERROR][][mem_log.c:115] [ERROR][37801.70295][1095489:1095489][MEM_POOL] Fail to destroy memory pool(ret=-16777199).

hb_mem_pool_destroy HB_MEM_ERR_POOL_BUSY, need free first.

sample_pool done

=================================================

在graphic buffer与common buffer之间实现buffer转换

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 21

sample_mode = 21

=================================================

Ready to sample_alloc_graph_buf_group_heapmask

----alloc graphic buffer done!----

the data in graphic buffer:

size: 0x1fa400

flags: 0x8000011

fd: 4

share id: 16

virt_addr: 0x0xffff8d800000

paddr: 0xc0000000

----change graphic buffer to common buffer done!----

the data in new common buffer:

size: 0x1fa400

flags: 0x8000011

fd: 4

share id: 16

virt_addr: 0x0xffff8d800000

paddr: 0xc0000000

----alloc common buffer done!----

the data in common buffer:

size: 0x10000

flags: 0x8000011

fd: 5

share id: 17

virt_addr: 0x0xffff8d7f0000

paddr: 0xc0300000

----change common buffer to graphic buffer done!----

the data in new graphic buffer:

size: 0x10000

flags: 0x8000011

fd: 5

share id: 17

virt_addr: 0x0xffff8d7f0000

paddr: 0xc0300000

sample_alloc_graph_buf_group_heapmask done

=================================================

增加common buffer用户态引用计数

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 22

sample_mode = 22

=================================================

Ready to sample_com_buf_user_consume_cnt

alloc com buf, share_id: 10

[2342:2342] Do system command cat /sys/kernel/debug/ion/clients/2342*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

ion_cma: 400000 : 1 : 1 : 40c01861 : 3: 10 : 1

-------------------------------------------------------------------------

total 400000

-------------------------------------------------------------------------

[2342:2342] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 2342 | grep -w sample_hbmem.

[2342:2342] Result 256.

free com buf

[2342:2342] Do system command cat /sys/kernel/debug/ion/clients/2342*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

-------------------------------------------------------------------------

total 0

-------------------------------------------------------------------------

[2342:2342] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 2342 | grep -w sample_hbmem.

[2342:2342] Result 256.

sample_com_buf_user_consume_cnt done

=================================================

增加graphic buffer用户态引用计数

/app/sample/S83_Sample/S83E02_Communication/libhbmem_sample/bin/libhbmem_sample -m 23

sample_mode = 23

=================================================

Ready to sample_graph_buf_user_consume_cnt

graph_buf.plane_cnt: 2, graph_buf.format: 8, graph_buf.width: 1280, graph_buf.height: 720, graph_buf.stride: 0, graph_buf.vstride: 0, graph_buf.stride: 0, graph_buf.flags: 17

[2355:2355] Do system command cat /sys/kernel/debug/ion/clients/2355*.

heap_name: size_in_bytes : handle refcount : handle import : buffer ptr : buffer refcount : buffer share id : buffer share count

ion_cma: 80000 : 1 : 1 : d5f2e0cd : 3: 11 : 1

ion_cma: f0000 : 1 : 1 : 3ff45cd5 : 3: 10 : 1

-------------------------------------------------------------------------

total 170000

-------------------------------------------------------------------------

[2355:2355] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 2355 | grep -w sample_hbmem.

[2355:2355] Result 256.

sample_graph_buf_user_consume_cnt done

=================================================

J6 hb mem使用说明

功能概述

软件架构说明

API流程说明

编译环境

运行

运行参数说明
